RecSys Transformer Models Tutorial

This tutorial concerns following questions: 1. How to apply SASRec and BERT4Rec transformer models using RecTools? 2. How do SASRec and BERT4Rec models work under the hood?

Transformer models came to recommendation systems from NLP, where they are proved to have a significant impact. As transformers were applied to sequential data it is common to use them for recommender systems, where interactions are ordered by the date of their occurrence. In this tutorial focus is on SASRec and BERT4Rec - models which are considered as a common starting point for transformer application in RecSys.

Why transformers from RecTools?

• RecTools implementations achieve highest metrics on reproducible public benchmarks against other well-known implementations.

• Simplest interface in fit / recommend paradigm.

• Item features are added to item embedding net.

• Multiple loss options.

• Advanced training options like custom validation, logging, checkpoints and early stopping are available. See Advanced training guide.

• You can customize models architecture any way you like, keeping all of the above benefits. See Customization guide.

Table of Contents

• Prepare data

• SASRec & BERT4Rec

  • SASRec

  • BERT4Rec

  • Main differences

• RecTools implementation

• Application of models

  • Basic usage

  • Adding item features. Selecting item net components

  • Selecting losses

  • Customizing model

  • Cross-validation

  • Item-to-item recommendations

  • Inference tricks (inference for cold users)

• Detailed SASRec and BERT4Rec description

  • Dataset processing

  • Transformer layers

  • Losses

• Links

import numpy as np
import os
import pandas as pd
import torch
import typing as tp
import warnings
import threadpoolctl
import re
import plotly.express as px

from lightning_fabric import seed_everything
from pathlib import Path

from rectools import Columns
from rectools.dataset import Dataset
from rectools.metrics import (
    MAP,
    CoveredUsers,
    AvgRecPopularity,
    Intersection,
    HitRate,
    Serendipity,
)
from rectools.models import PopularModel, EASEModel, SASRecModel, BERT4RecModel
from rectools.model_selection import TimeRangeSplitter, cross_validate
from rectools.models.nn.item_net import CatFeaturesItemNet, IdEmbeddingsItemNet
from rectools.visuals import MetricsApp

warnings.simplefilter("ignore")

# Enable deterministic behaviour with CUDA >= 10.2
os.environ["CUBLAS_WORKSPACE_CONFIG"] = ":4096:8"

# Random seed
RANDOM_STATE=60
torch.use_deterministic_algorithms(True)
seed_everything(RANDOM_STATE, workers=True)

Seed set to 60

60

Prepare data

We are using KION dataset for this tutorial. The data was gathered from the users of MTS KION video streaming platform.

%%time
!wget -q https://github.com/irsafilo/KION_DATASET/raw/f69775be31fa5779907cf0a92ddedb70037fb5ae/data_en.zip -O data_en.zip
!unzip -o data_en.zip
!rm data_en.zip

Archive:  data_en.zip
  inflating: data_en/items_en.csv
  inflating: __MACOSX/data_en/._items_en.csv
  inflating: data_en/interactions.csv
  inflating: __MACOSX/data_en/._interactions.csv
  inflating: data_en/users_en.csv
  inflating: __MACOSX/data_en/._users_en.csv
CPU times: user 74.8 ms, sys: 54.9 ms, total: 130 ms
Wall time: 7.07 s

# Download dataset
DATA_PATH = Path("data_en")
items = pd.read_csv(DATA_PATH / 'items_en.csv', index_col=0)
interactions = (
    pd.read_csv(DATA_PATH / 'interactions.csv', parse_dates=["last_watch_dt"])
    .rename(columns={"last_watch_dt": Columns.Datetime})
)

# Process interactions
interactions[Columns.Weight] = 1
interactions = interactions[["user_id", "item_id", "datetime", "weight"]]
print(interactions.shape)
interactions.head(2)

(5476251, 4)

	user_id	item_id	datetime	weight
0	176549	9506	2021-05-11	1
1	699317	1659	2021-05-29	1

# Process item features
items = items.loc[items[Columns.Item].isin(interactions[Columns.Item])].copy()

# Genre
items["genre"] = items["genres"].str.lower().str.replace(", ", ",", regex=False).str.split(",")
genre_feature = items[["item_id", "genre"]].explode("genre")
genre_feature.columns = ["id", "value"]
genre_feature["feature"] = "genre"

# Director
items["director"] = items["transliterated"].str.lower().str.replace(", ", ",", regex=False).str.split(",")
director_feature = items[["item_id", "director"]].explode("director")
director_feature.columns = ["id", "value"]
director_feature["feature"] = "director"

item_features = pd.concat((genre_feature, director_feature))

item_features.head(5)

	id	value	feature
0	10711	drama	genre
0	10711	foreign	genre
0	10711	detective	genre
0	10711	melodrama	genre
1	2508	foreign	genre

# Construct dataset
dataset = Dataset.construct(
    interactions_df=interactions,
    item_features_df=item_features,
    cat_item_features=["genre", "director"],
)

# Prepare test user
test_user = 176549
print(interactions[interactions["user_id"] == test_user].shape)
interactions[interactions["user_id"] == test_user].head(2)

(82, 4)

	user_id	item_id	datetime	weight
0	176549	9506	2021-05-11	1
3815	176549	15469	2021-05-25	1

SASRec & BERT4Rec

As an input both models take user sequences, containing previous user interaction history. Description of how they are created from user-item interactions can be found in the “Detailed SASRec and BERT4Rec description” part. Item embeddings from these sequences are fed to transformer blocks with multi-head self-attention and feedforward neural network as main components. After one or several stacked attention blocks, resulting user sequence latent representation is used to predict targets items.

SASRec is a transformer-based sequential model with unidirectional attention mechanism and “Shifted Sequence” training objective. Resulting user sequence latent representation is used to predict all items in user sequence at each sequence position where each item prediction is based only on previous items.

BERT4Rec is a transformer-based sequential model with bi-directional attention mechanism and “Item Masking” (same as “MLM”) training objective. Resulting user sequence latent representation is used to predict masked items.

Difference	Difference type	SASRec	BERT4Rec
Training objective	Conceptual	Shifted sequence target	Item masking target
Attention	Conceptual	Uni-directional	Bi-directional
Transformer block	Can be modified	Check “Detailed SASRec and BERT4Rec description”	Check “Detailed SASRec and BERT4Rec description”
Loss in original paper	Can be modified	Binary cross-entropy (BCE) with 1 negative per positive	Cross-entropy (Softmax) on full items catalog

Following pictures provide more insights into attention difference:

RecTools implementation

We use dot product tying of user sequence embeddings (obtained after transformer blocks) and candidate item embeddings. Item embeddings are formed as sum of learnt item id embeddings and learnt item categorical features embeddings.

The following losses are supported:

Losses	SASRec	BERT4Rec
Softmax loss	+	+
BCE loss	+	+
gBCE loss	+	+
Variable number of negatives	+	+

We also allow explicit customization of any part of the model:

Customization options	SASRec	BERT4Rec
Data preprocessing	+	+
Item net for embeddings	+	+
Positional encoding	+	+
Transformer layers	+	+
Model training	+	+

* customization options describe what parts of transformer model architecture can be changed by the user flexibly. For that user should inherit from the respective base class and pass a new class as a model parameter.

Reference implementations

1. BERT4Rec reference implementation: https://github.com/jaywonchung/BERT4Rec-VAE-Pytorch.git What’s changed: we implemented dot product tying between session latent representation and item embeddings instead of linear layer at the end of the model. Also we use pytorch implementation of Multi-Head Attention.

2. SASrec reference implementation: https://github.com/asash/gSASRec-pytorch.git What’s changed: we use pytorch implementation of Multi-Head Attention.

In addition to original model losses we implemented different loss options to both models including softmax, BCE and gBCE with variable number of negatives. Reference implementation for gBCE loss can be found here: https://github.com/asash/gsasrec

Additional details

1. Xavier normal initialization for model parameters

2. Adam optimizer with betas=(0.9, 0.98)

3. We use LightningModule and Trainer from PyTorch Lightning to wrap model training and inference. Multi-GPU training is enabled out of the box.

Application of Models

Basic usage

• Specify maximum length of user-item interaction history with session_max_len

• Specify loss from “softmax”, “BCE”, “gBCE”

• Specify latent embeddings size with n_factors

• Specify number of transformer blocks with n_blocks

• Specify number of attention heads with n_heads

• Specify dropout_rate

• Specify lr for learning rate

• Specify batch_size

• Specify epochs for specific number of model training epochs

• Specify deterministic=True for deterministic model training

• Specify verbose

Parameter specific for BERT4Rec:

• Specify probability of a sequence item to be masked mask_prob

sasrec = SASRecModel(
    session_max_len=20,
    loss="softmax",
    n_factors=64,
    n_blocks=1,
    n_heads=4,
    dropout_rate=0.2,
    lr=0.001,
    batch_size=128,
    epochs=1,
    verbose=1,
    deterministic=True,
)

# Here we just keep deafult params
bert4rec = BERT4RecModel(
    mask_prob=0.15,  # specify probability of masking tokens
    deterministic=True,
)

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

%%time
sasrec.fit(dataset);

LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]

  | Name        | Type                     | Params | Mode
-----------------------------------------------------------------
0 | torch_model | TransformerTorchBackbone | 638 K  | train
-----------------------------------------------------------------
638 K     Trainable params
0         Non-trainable params
638 K     Total params
2.553     Total estimated model params size (MB)
26        Modules in train mode
0         Modules in eval mode

`Trainer.fit` stopped: `max_epochs=1` reached.

CPU times: user 16.3 s, sys: 1.12 s, total: 17.4 s
Wall time: 9min 54s

%%time
recos = sasrec.recommend(
    users=[test_user],
    dataset=dataset,
    k=3,
    filter_viewed=True,
    on_unsupported_targets="warn"
)
recos.merge(items[["item_id", "title_orig"]], on="item_id").sort_values(["user_id", "rank"])

CPU times: user 119 ms, sys: 82.6 ms, total: 201 ms
Wall time: 201 ms

	user_id	item_id	score	rank	title_orig
0	176549	11749	3.427022	1	Incredibles 2
1	176549	12965	3.227504	2	Cars 3
2	176549	7571	3.096683	3	100% Wolf

Adding item features. Selecting item net components

To add item features to the process of learning item embeddings it is necessary to pass those features to RecTools dataset during construction (like we did above in this tutorial). Also it is necessary to pass CatFeaturesItemNet to item_net_block_types during model initialization. Any combination of IdEmbeddingsItemNet and CatFeaturesItemNet is applicable.

By default our models use all features that are present in training dataset. Default model will use item features when they are present in dataset.

Categorical features:

For each pair of feature and feature value categorical feature embedding is created. Categorical feature embeddings are summed up with other embeddings for each item if they are present in the model.

Numerical features: Are not supported.

sasrec_ids_only = SASRecModel(
    deterministic=True,
    loss="softmax",
    item_net_block_types=(IdEmbeddingsItemNet,)  # Use only item ids
)
sasrec_ids_and_categories = SASRecModel(
    deterministic=True,
    loss="softmax",
    item_net_block_types=(IdEmbeddingsItemNet, CatFeaturesItemNet)  # Use item ids and cat features
)
sasrec_categories_only = SASRecModel(
    deterministic=True,
    loss="softmax",
    item_net_block_types=(CatFeaturesItemNet,)  # Use only cat item features
)

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

Selecting losses

RecTools supports 3 losses:

1. Softmax: requires no additional parameters. Calculated on full item catalog. Used by default.

2. BCE: user can specify number of negatives to be sampled with n_negatives parameter.

3. gBCE: user can specify number of negatives to be sampled with n_negatives parameter and calibration hyperparameter gbce_t

See “Losses” section in “Detailed SASRec and BERT4Rec description” below for full losses description and math.

sasrec_softmax = SASRecModel(
    deterministic=True,
    loss="softmax",
)

sasrec_bce = SASRecModel(
    deterministic=True,
    loss="BCE",
    n_negatives=50,
)
sasrec_gbce = SASRecModel(
    deterministic=True,
    loss="gBCE",
    n_negatives=50,
    gbce_t=0.2,
)

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

Customizing model

• Specify minimum number of user interactions in dataset that is required to include user to model training with train_min_user_interactions

• Specify whether positional encoding should be used with use_pos_emb

• Specify whether key_padding_mask in multi-head attention should be used with use_key_padding_mask. BERT4Rec has it set to True by default. SASRec has it set to False by default because of explicit zero multiplication of padding embeddings inside transfomer layers that we inherited from the original implementation.

For custom classes: inherit from base class and pass custom class as model parameter

• Specify item_net_block_types for Item Net blocks from (IdEmbeddingsItemNet, CatFeaturesItemNet), (IdEmbeddingsItemNet,), (, CatFeaturesItemNet) or custom embedding network. Inherit from ItemNetBase

• Specify pos_encoding_type for custom positional encoding logic. Inherit from PositionalEncodingBase

• Specify transformer_layers_type for custom transformer layers logic. Inherit from TransformerLayersBase

• Specify data_preparator_type for custom data processing logic. Inherit from SessionEncoderDataPreparatorBase

• Specify lightning_module_type for custom training logic. Inherit from SessionEncoderLightningModuleBase

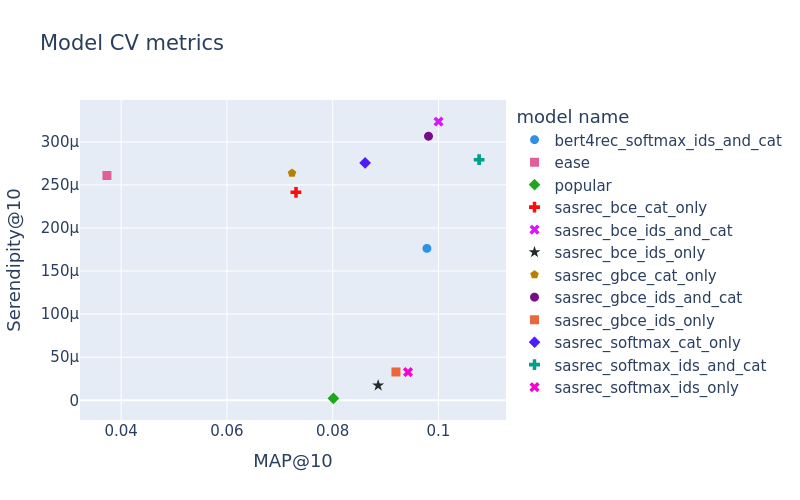

Cross-validation

# Use last week to validate model. Number of folds is set to 1 to speed up training
splitter = TimeRangeSplitter(
    test_size="7D",
    n_splits=1,
    filter_already_seen=True,
)

models = {
    "popular": PopularModel(),
    "ease": EASEModel(),
    "bert4rec_softmax_ids_and_cat": bert4rec,
    "sasrec_softmax_ids_and_cat": sasrec_softmax,
    "sasrec_bce_ids_and_cat": sasrec_bce,
    "sasrec_gbce_ids_and_cat": sasrec_gbce,
    "sasrec_softmax_ids_only": sasrec_ids_only,
    "sasrec_softmax_cat_only": sasrec_categories_only,
    "sasrec_bce_ids_only": SASRecModel(deterministic=True, loss="BCE", n_negatives=50, item_net_block_types=(IdEmbeddingsItemNet, )),
    "sasrec_bce_cat_only": SASRecModel(deterministic=True, loss="BCE", n_negatives=50, item_net_block_types=(CatFeaturesItemNet, )),
    "sasrec_gbce_ids_only": SASRecModel(deterministic=True, loss="gBCE", n_negatives=50, item_net_block_types=(IdEmbeddingsItemNet, )),
    "sasrec_gbce_cat_only": SASRecModel(deterministic=True, loss="gBCE", n_negatives=50, item_net_block_types=(CatFeaturesItemNet, )),
}

metrics = {
    "HitRate@10": HitRate(k=10),
    "MAP@10": MAP(k=10),
    "Serendipity@10": Serendipity(k=10),
    "CoveredUsers@10": CoveredUsers(k=10),  # how many test users received recommendations
    "AvgRecPopularity@10": AvgRecPopularity(k=10),  # average popularity of recommended items
    "Intersection@10": Intersection(k=10),  # intersection with recommendations from reference model
}

K_RECS = 10

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

%%time

# For each fold generate train and test part of dataset
# Then fit every model, generate recommendations and calculate metrics

cv_results = cross_validate(
    dataset=dataset,
    splitter=splitter,
    models=models,
    metrics=metrics,
    k=K_RECS,
    filter_viewed=True,
    ref_models=["popular"],  # pass reference model to calculate recommendations intersection
    validate_ref_models=True,
)

LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1]
`Trainer.fit` stopped: `max_epochs=3` reached.

CPU times: user 15h 2min 16s, sys: 7min 50s, total: 15h 10min 7s
Wall time: 2h 37min 44s

pivot_results = (
    pd.DataFrame(cv_results["metrics"])
    .drop(columns="i_split")
    .groupby(["model"], sort=False)
    .agg(["mean"])
)
pivot_results.columns = pivot_results.columns.droplevel(1)
pivot_results.to_csv("rectools_transformers_cv.csv", index=True)
pivot_results

	HitRate@10	MAP@10	AvgRecPopularity@10	Serendipity@10	Intersection@10_popular	CoveredUsers@10
model
popular	0.274365	0.080114	82236.761783	0.000002	1.000000	1.0
ease	0.191522	0.037317	15987.674248	0.000261	0.136901	1.0
bert4rec_softmax_ids_and_cat	0.341591	0.097810	49256.224578	0.000176	0.391448	1.0
sasrec_softmax_ids_and_cat	0.367610	0.107672	53651.582417	0.000279	0.424526	1.0
sasrec_bce_ids_and_cat	0.358316	0.100007	48322.991465	0.000323	0.376132	1.0
sasrec_gbce_ids_and_cat	0.358089	0.098112	48277.492343	0.000307	0.374561	1.0
sasrec_softmax_ids_only	0.317717	0.094235	69309.781054	0.000033	0.619626	1.0
sasrec_softmax_cat_only	0.302582	0.086132	36868.127081	0.000276	0.251032	1.0
sasrec_bce_ids_only	0.310558	0.088595	74938.036791	0.000017	0.679780	1.0
sasrec_bce_cat_only	0.273502	0.073051	34082.316616	0.000241	0.249858	1.0
sasrec_gbce_ids_only	0.317263	0.091954	70467.451156	0.000033	0.620795	1.0
sasrec_gbce_cat_only	0.275219	0.072310	33037.131802	0.000264	0.232910	1.0

models_metrics = pivot_results.reset_index()[["model", "MAP@10", "Serendipity@10"]]

models_to_skip_meta = ["popular", "ease", "bert4rec_softmax_ids_and_cat"]
models_metadata = [
    {
        "model": model_name,
        "item_net_block_types": ",".join(
            block for block in ["Id", "Cat"]
            if re.search(block, str(model.get_params()["item_net_block_types"]))
        ),
    }
    for model_name, model in models.items() if model_name not in models_to_skip_meta
]

app = MetricsApp.construct(
    models_metrics=models_metrics,
    models_metadata=pd.DataFrame(models_metadata),
    scatter_kwargs={
        "color_discrete_sequence": px.colors.qualitative.Dark24,
        "symbol_sequence": ['circle', 'square', 'diamond', 'cross', 'x', 'star', 'pentagon'],
    }
)
fig = app.fig
fig.update_layout(title="Model CV metrics", font={"size": 15})
fig.update_traces(marker={'size': 9})
fig.show("png")

# For this plot metadata colouring was enabled
fig = app.fig
fig.update_layout(title="SASRec CV metrics by item net blocks",
                  font={"size": 15})
fig.update_traces(marker={'size': 9})
fig.show("png")

Item-to-item recommendations

i2i recommendations are generated in the following way:

1. Get item embeddings received after the train stage

2. Calculate cosine similarity of catalog item embedding with target item embedding

3. Return k most similar items

# Prepare test item
test_item = 13865
items.loc[items['item_id'] == test_item, "title"]

6501    Devyataev
Name: title, dtype: object

%%time
recos = sasrec.recommend_to_items(
    target_items=[test_item],
    dataset=dataset,
    k=3,
    filter_itself=True,
    items_to_recommend=None,
)
recos.merge(items[["item_id", "title_orig"]], on="item_id").sort_values(["item_id", "rank"])

CPU times: user 2.06 s, sys: 1.73 s, total: 3.79 s
Wall time: 3.81 s

	target_item_id	item_id	score	rank	title_orig
2	13865	3734	0.898868	3	Prababushka lyogkogo povedeniya
1	13865	9728	0.952629	2	Wrath of Man
0	13865	10440	0.961360	1	Khrustal'nyy

Inference tricks (model known items and inference for cold users)

It may happen that SASRec or BERT4Rec filters out users with less than train_min_user_interactions interactions during the train stage. However, it is still possible to make recommendations for those users if they have at least one interaction in history with an item that was present at training.

As an example consider user 324373, for whom there is only one interaction in the dataset.

# Prepare test user with 1 interaction
test_user_one = 324373
print(interactions[interactions["user_id"] == test_user_one].shape)
interactions[interactions["user_id"] == test_user_one]

(1, 4)

	user_id	item_id	datetime	weight
2493287	324373	10440	2021-06-24	1

%%time
recos = sasrec.recommend(
    users=[test_user_one],
    dataset=dataset,
    k=3,
    filter_viewed=True,
    on_unsupported_targets="warn"
)
recos.merge(items[["item_id", "title_orig"]], on="item_id").sort_values(["user_id", "rank"])

CPU times: user 133 ms, sys: 15.9 ms, total: 149 ms
Wall time: 149 ms

	user_id	item_id	score	rank	title_orig
0	324373	15297	4.755268	1	Klinika schast'ya
1	324373	9728	4.134816	2	Wrath of Man
2	324373	13865	4.025954	3	V2. Escape from Hell

Another case is when user that was filtered from train he doesn’t have interactions with items that are known by the model. In this case user will not get recommendations.

# Prepare test user with items unknown by the model
test_user_no_recs = 14630
print(interactions[interactions["user_id"] == test_user_no_recs.shape])
interactions[interactions["user_id"] == test_user_no_recs.head(2)]

(1, 4)

	user_id	item_id	datetime	weight
2393877	14630	8871	2021-03-28	1

Flag on_unsupported_target allows to chose behaviour for processing users that cannot get recommendations from model.

Flag options:

• “ignore” - skip such users (show warning with the number of cold users)

• “warn” - skip such users but show a warning.

• “raise” - stop recommendation procedure with an error.

%%time
recos = sasrec.recommend(
    users=[test_user_no_recs],
    dataset=dataset,
    k=3,
    filter_viewed=True,
    on_unsupported_targets="ignore"  # prevent raising an error
)
recos.merge(items[["item_id", "title_orig"]], on="item_id").sort_values(["user_id", "rank"])

CPU times: user 118 ms, sys: 2 ms, total: 120 ms
Wall time: 119 ms

	user_id	item_id	score	rank	title_orig

Detailed SASRec and BERT4Rec description

Dataset processing

Preprocessing steps will be shown using toy dataset:

1. Filter out users with less than train_min_user_interactions interactions in the train dataset.

   • SASRec: the model uses shifted user interactions to make next item prediction, thus, at least 2 items should be in the history (train_min_user_interactions > 1).

   • BERT4Rec: the model bases on masked language modelling, thus, at least 2 item should be in the history but larger theshold could be more meaningful.

2. Leave session_maxlen most recent interactions for each user.

After the first 2 steps, some users and/or items may be filtered out from the train dataset. However, as it will be shown further, it is still possible to make recommendations for a previously unmet user, if at least one of his items is known.

3. Create user sessions: for each user specify items with which there was an interaction in the order from earliest to most recent. Sessions for example dataset are the following (u3 user was filtered out):

   \[S^1 = (i2, i3, i1)\]
   \[S^2 = (i3, i1)\]

4. Before the train stage each session is divided into train and target.

   • SASRec: as the task is to predict the next item, the shifted sequence is considered as the target.

     \[S^1_{train} = (i2, i3), S^1_{target} = (i3, i1)\]
     \[S^2_{train} = (i3), S^2_{target} = (i1)\]

   • BERT4Rec: as the task is masked session modelling, following rules are applied:

   For each item in the user session generate probability p
   If p < mask_prob:
       p = p / mask_prob
       if p < 0.8:
           replace item with MASK
       if p > 0.8 and p < 0.9:
           replace item with another random item
   If p > mask_prob:
        Replace target for this item with PAD. We will not predict this element


   For our dataset an example of resulting train and target will be:

   \[S^1_{train} = (i2, MASK, i1), S^1_{target} = (i2, i3, PAD)\]
   \[S^2_{train} = (i2, i1), S^2_{target} = (i3, i1)\]

   Session that was formed for BERT4Rec is one element longer than the session for SASRec. This happens because of the way of processing “shifted sequence” target for SASRec.

5. Both train and target sequences are adjusted to take into account user-defined session_maxlen:

   • SASRec:

     • If session is longer than session_maxlen, cut earliest items

     • If session is shorter than session_maxlen, pad earliest items with PAD element

       \[S^1_{train} = (PAD, PAD, PAD, i2, i3), S^1_{target} = (PAD, PAD, PAD, i3, i1)\]
       \[S^2_{train} = (PAD, PAD, PAD, PAD, i3), S^2_{target} = (PAD, PAD, PAD, PAD, i1)\]

   • BERT4Rec:

     • If session is longer than session_maxlen + 1, cut earliest items

     • If session is shorter than session_maxlen + 1, pad earliest items with PAD element

       \[S^1_{train} = (PAD, PAD, PAD, i2, MASK, i1), S^1_{target} = (PAD, PAD, PAD, i2, i3, PAD)\]
       \[S^2_{train} = (PAD, PAD, PAD, PAD, i2, i1), S^2_{target} = (PAD, PAD, PAD, PAD, i3, i1)\]

During recommend stage SASRec model will take the last item latent representation for predicting next item. But BERT4Rec will put “MASK” token after the last item and will make predictions based on this added token latent representation. This explains why we need to make +1 to session_maxlen for BERT4Rec during training. The actual amount of interactions used for training and inference of both models is exactly the same. Each model will make predictions based on the most recent session_maxlen items for each user.

Transformer layers

SASRec

In contrast to BERT4Rec, SASRec is a causal model. It applies causal mask to enforce model focus solely on past interactions.

Uni-directional attention is implemented using a causal mask, which prevents model looking in the future.

BERT4Rec

Bi-directional attention. In attention only padding mask is used, which masks padding elements not to allow them affect the results.

Losses

Softmax loss is a Cross Entropy loss calculated over the full catalog of items. As softmax loss finds probability distribution across all items, it returns the most precise results, however, for large catalogs such calculations are prohibitively inefficient.

RecTools implementation uses torch.nn.CrossEntropyLoss with ‘none’ reduction

\[L = \{l_1, l_2, ..., l_N\}^T\]

\[l_n = -w_{y_n} log \frac{exp(x_{n,y_n})}{\sum_{c=1}^Cexp(x_{n,c})} \cdot I\{y_n \neq \text{ignore index}\}\]

After that ‘sum’ reduction is applied, excluding padding elements.

Losses with negative sampling

Losses with negative sampling are needed to deal with the problem of computational inefficiency inherent to usage of full catalog. For that n negative items per positive are sampled and used for calculations.

RecTools implementation samples negatives uniformly from training dataset.

BCE loss

Binary Cross Entropy loss aims to improve computational efficiency by using a few sampled negatives instead of the full catalog for calculations. The problem is that in most cases performance degrades.

Logits \((x_n)\) - concat positive and negative logits.

Target \((y_n)\) - positive samples are marked as 1, negative as 0.

RecTools implementation uses torch.nn.BCEWithLogitsLoss with ‘none’ reduction

\[L = \{l_1, l_2, ..., l_N\}^T\]

\[l_n = -w_{y_n} [y_n log\sigma (x_n) + (1 - y_n) log(1 - \sigma (x_n))]\]

After that ‘sum’ reduction is applied, excluding padding elements.

gBCE loss

Models trained with negative sampling (BCE loss) tend to overestimate probabilities of positive interactions. To mitigate this effect gBCE loss can be used, which is actually BCE loss applied to transformed logits. It combines efficiency of BCE loss with better performance results.

Logit transformation is applied to positive logits only, negative logits remain unchanged:

\[\text{transformed positive logits} = log(\frac{1}{\sigma^{-\beta}(s^+) - 1})\]

\[\beta = \alpha(t(1-\frac{1}{\alpha}) + \frac{1}{\alpha})\]

\[\alpha = \frac{1}{\text{number of unique items} - 1}\]

\[t - \text{calibration hyperparameter}\]

After that BCE loss is applied to concatenation of transformed positive logits and negative logits.

Links

1. Transformers: Attention Is All You Need

SASRec

1. SASRec original paper: Self-Attentive Sequential Recommendation

2. Turning Dross Into Gold Loss: is BERT4Rec really better than SASRec?

3. gSASRec: Reducing Overconfidence in Sequential Recommendation Trained with Negative Sampling

BERT4Rec

1. BERT4Rec original paper: BERT4Rec: Sequential Recommendation with Bidirectional Encoder Representations from Transformer

2. Comparison of BERT4Rec implementations: A Systematic Review and Replicability Study of BERT4Rec for Sequential Recommendation
